RA8872 是一个文字与绘图模式的液晶显示(TFT-LCD)控制器,可结合文字或 2D 图形应用,支持最大到 320*240 点分辨率的中小尺寸数字 TFT 屏。 RA8872 内建内存能支持 65K 色的 320*240 单图层显示;或者 4K 色的 320*240 双图层显示。
RA8872 内建 CGROM 能显示国际标准的 ISO 8859-1/2/3/4 字型,包含 256*4 个可显示大部份使用于英语系和欧洲国家的半型字字母及符号。 在图形的使用上,RA8872 支援一 2D 的 BTE 引擎(Block Transfer Engine),此 BTE 兼容于一般通用的 2D BitBLT 的功能,可用于处理大量图形数据转换。 同时 RA8872 也内建几何图形加速引擎(Geometric Speed-up Engine),提供用户可以透过简单的设定轻松的画出直线、矩形和圆形的几何图形形状。 除此之外,RA8872 还包括一些强大的图形处理功能,如画面旋转功能、卷动功能、图形 Pattern、双层混合显示和文字放大等等, 这些功能将可节省用户在中小尺寸 TFT 屏应用的开发时间,并且提升 MCU 软件的执行效率。
RA8872 提供低成本的 8-bit 8080 / 6800 MCU 界面,还有一 10-bit 的 4 线式触摸屏控制器,另外 2 组的脉宽调制(PWM)可用于调整 TFT 屏背光或其它应用。 相对于其它的解决方案,RA8872 是一个功能强大和廉价的彩色 TFT 控制器,可以让以往单色 STN 屏的应用顺利、快速、轻易的转成 TFT 屏的应用, 解决设计者在软硬件开发上的疑虑,同时达成低成本、高效能的系统方案。

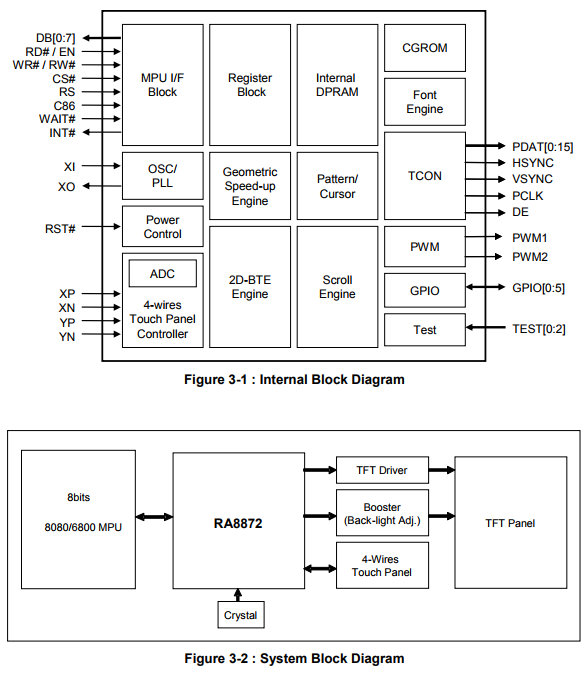

Support Text/Graphic Mixed Display Mode
Supports images sizes: 320 x 240
Embedded 230KB DDRAM
256/4K/65K Colors
Supporting 8/12/16-bits Generic RGB Interface
Embedded 10K ROM with 8x16 Character
Powerful Block Scrolling for Vertical or Horizontal Direction
Screen Display Rotaion
Supports Block Transfer Engine (BTE)
Embedded Geometric Speed-up Engine
Font Enlargement for Horizontal or Vertical Direction
Supporting User-defined Characters and Patterns
2 Programmable PWM for Back-light Adjusting
Text Cursor for Character Writing
32x32 Pixel Graphic Cursor Funtion
Embedded 4-wires Touch Panel Controller
Functions | RA8872 | RA8870 | RA8875 |
---|---|---|---|
Product Guide | RA8872 : PDF | RA8870 : PDF | RA8875 : PDF |
Resolution(Max) | 320 x 240 | 640 x 480 | 800 x 480 |
Colors(Max) | 256 / 4K / 65K | 256 / 4K / 65K | 256 / 4K / 65K |
Panel Type | CMOS / TTL | CMOS / TTL | CMOS / TTL |
Parallel MPU Interface | 8-Bits | 8/16-Bits | 8/16-Bits |
Serial MCU I/F | -- | -- | SPI 3 | 4 / IIC |
Embedded Display RAM | 230KB | 230KB | 768KB |
Embedded ASCII Font | ISO-8859 Latin 1~4 |
ISO-8859 Latin 1~4 | ISO-8859 Latin 1~4 |
External Font ROM I/F | -- | Parallel | Serial |
Touch Panel Controller | 4-Wires | 4/5-Wires | 4-Wires |
Block Transfer Engine | V | V | V |
Geometric Speed-up Engine | V | V | V |
Dual Pages Mode | V | V | V |
Horizontal Scroll | V | V | V |
Vertical Scroll | V | V | V |
Graphic/Font Rotation | V | V | V |
Programmable Text Cursor | V | V | V |
Support Graphic Cursor | V | V | V |
User-defined Characters | V | V | V |
UART I/F | -- | -- | V |
PWM O/P | 2 | 2 | 2 |
Smart Key-Scan | -- | -- | 4x5 |
GPIO | 6 | 6 | 9 |
Clock Source | X'tal + PLL | X'tal + PLL | X'tal + PLL |
Operation Voltage | 3.0 ~ 3.6V | 3.0 ~ 3.6V | 3.0 ~ 3.6V |
Package | TQFP-100 | TQFP-128 | LQFP-100 |
Operation Temperature | -30 ~ +85℃ | -30 ~ +85℃ | -30 ~ +85℃ |
