RA8872 是一個文字與繪圖模式的液晶顯示(TFT-LCD)控制器,可結合文字或 2D 圖形應用,支援最大到 320*240 點解析度的中小尺寸數位 TFT 面板。RA8872 內建記憶體能支援 65K 色的 320*240 單圖層顯示或 4K 色的 320*240 雙圖層顯示。
RA8872 內建 CGROM 能顯示國際標準的 ISO 8859-1/2/3/4 字型,包含 256*4 個可顯示大部份使用於英語系和歐洲國家的半型字字母及符號。在圖形的使用上,RA8872 支援一 2D 的 BTE 引擎(Block Transfer Engine),此 BTE 相容於一般通用的 2D BitBLT 的功能,可用於處理大量圖形資料轉換。同時 RA8872 也內建幾何圖形加速引擎(Geometric Speed-up Engine),提供使用者可以透過簡單的設定輕鬆的畫出直線、 矩形和圓形的幾何圖形形狀。除此之外,RA8872 還包括一些強大的圖形處理功能,如畫面旋轉功能、捲動功能、圖形 Pattern、雙層混合顯示和文字放大等等,這些功能將可節省使用者在中小尺寸 TFT 面板應用的開發時間,並且提昇 MCU 軟體的執行效率。
RA8872 提供低成本的 8-bit 8080 / 6800 MCU 界面,還有一 10-bit 的 4 線式觸控面板控制器,另外 2 組的脈寬調變(PWM)可用於調整面板背光或其他應用。相對於其它的解決方案,RA8872 是一個功能強大和廉價的彩色 TFT 控制器,可以讓以往單色 STN 面板的應用順利、快速、輕易的轉成 TFT 面板的應用,解 決設計者在軟硬體開發上的疑慮,同時達成低成本、高效能的系統方案。

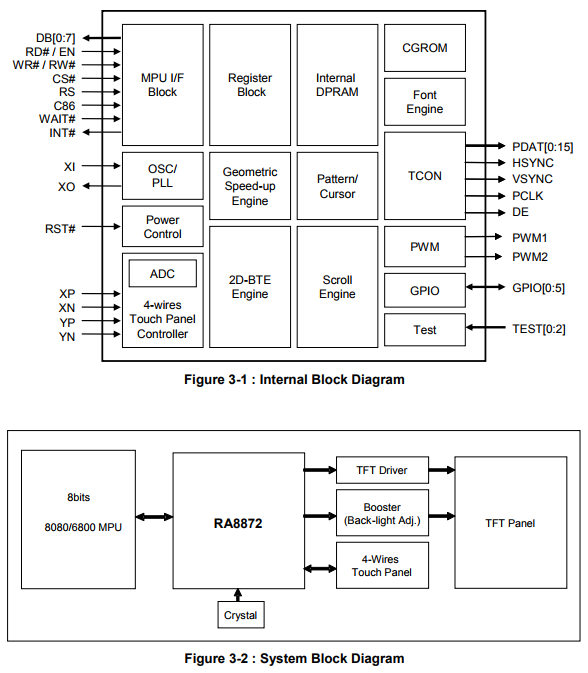

Support Text/Graphic Mixed Display Mode
Supports images sizes: 320 x 240
Embedded 230KB DDRAM
256/4K/65K Colors
Supporting 8/12/16-bits Generic RGB Interface
Embedded 10K ROM with 8x16 Character
Powerful Block Scrolling for Vertical or Horizontal Direction
Screen Display Rotaion
Supports Block Transfer Engine (BTE)
Embedded Geometric Speed-up Engine
Font Enlargement for Horizontal or Vertical Direction
Supporting User-defined Characters and Patterns
2 Programmable PWM for Back-light Adjusting
Text Cursor for Character Writing
32x32 Pixel Graphic Cursor Funtion
Embedded 4-wires Touch Panel Controller
Functions | RA8872 | RA8870 | RA8875 |
---|---|---|---|
Product Guide | RA8872 : PDF | RA8870 : PDF | RA8875 : PDF |
Resolution(Max) | 320 x 240 | 640 x 480 | 800 x 480 |
Colors(Max) | 256 / 4K / 65K | 256 / 4K / 65K | 256 / 4K / 65K |
Panel Type | CMOS / TTL | CMOS / TTL | CMOS / TTL |
Parallel MPU Interface | 8-Bits | 8/16-Bits | 8/16-Bits |
Serial MCU I/F | -- | -- | SPI 3 | 4 / IIC |
Embedded Display RAM | 230KB | 230KB | 768KB |
Embedded ASCII Font | ISO-8859 Latin 1~4 |
ISO-8859 Latin 1~4 | ISO-8859 Latin 1~4 |
External Font ROM I/F | -- | Parallel | Serial |
Touch Panel Controller | 4-Wires | 4/5-Wires | 4-Wires |
Block Transfer Engine | V | V | V |
Geometric Speed-up Engine | V | V | V |
Dual Pages Mode | V | V | V |
Horizontal Scroll | V | V | V |
Vertical Scroll | V | V | V |
Graphic/Font Rotation | V | V | V |
Programmable Text Cursor | V | V | V |
Support Graphic Cursor | V | V | V |
User-defined Characters | V | V | V |
UART I/F | -- | -- | V |
PWM O/P | 2 | 2 | 2 |
Smart Key-Scan | -- | -- | 4x5 |
GPIO | 6 | 6 | 9 |
Clock Source | X'tal + PLL | X'tal + PLL | X'tal + PLL |
Operation Voltage | 3.0 ~ 3.6V | 3.0 ~ 3.6V | 3.0 ~ 3.6V |
Package | TQFP-100 | TQFP-128 | LQFP-100 |
Operation Temperature | -30 ~ +85℃ | -30 ~ +85℃ | -30 ~ +85℃ |
