Introduction

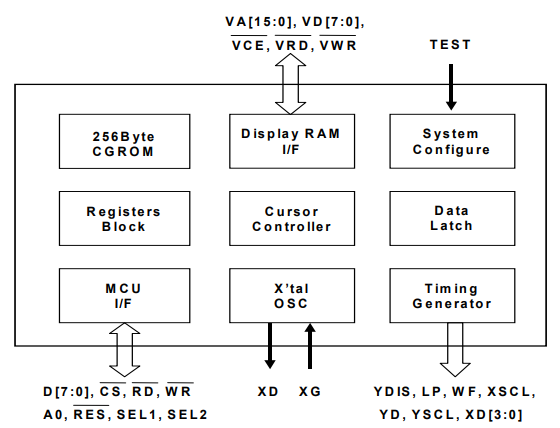

The RA8835/35A is a controller IC that can display text and graphics on LCD panel. It can display layered text and graphics, scroll the display in any direction and partition the display into multiple screens. It also stores text, character codes and bitmapped graphics data in external frame buffer memory. Display controller functions include transferring data from the controlling microprocessor to the buffer memory, reading memory data, converting data to display pixels and generating timing signals for the buffer memory, LCD panel.

The RA8835/35A has an internal character generator with 160, 5x7 pixel characters in internal mask ROM. The character generators support up to 64, 8x16 pixel characters in external character generator RAM and up to 256, 8x16 pixel characters in external character generator ROM.

Features

Character. Graphics and Mixed Mode

Three Overlapping Screens in graphics mode

Up to 640 X 256 pixel resolution

Up to 640 X 256 pixel resolution memory

Programmable cursor control

Smooth Horizontal and Vertical scrolling

1/2-duty to 1/256-duty

160, 5x7 pixel characters in internal mask-programmed character generator ROM

Up to 64, 8x16 pixel characters in external character generator RAM

Up to 256, 8x16 pixel characters in external character generator ROM

8-bit of 6800/8080 MCU interface

Low power consumption

Related product Specification
Functions RA6963 RA8835 / RA8835A
Product Guide RA6963 : PDF RA8835 : PDF
    RA8835A : PDF
Resolution(Max) External display RAM 64KB max External display RAM Up to 640x256 pixel
Operation Voltage 3.0~5.5V 2.7~5.5V
MPU Interface 8-bit ,8080 8-bit 6800,8080
Graphic / Text Graphic/ Text Graphic/ Text
Embedded Font RAM CGROM (128 word) CGROM (160 word)
Character Font Horizontal: 5, 6, 7, 8 Vertical: 8 (fixed) 5 x 7
Horizontal Scroll V V
Vertical Scroll V V
Read/Write Display Data V V
S/W & H/W Reset V V
Clock Source X’tal OSC X’tal OSC
CLK (MHz) 0.4~8 1~18
Package LQFP67 QFP60/TQFP60
Operation Temperature -30 ~ +85℃ -30 ~ +80℃
Compatible T6963C S1D13305
