Introduction

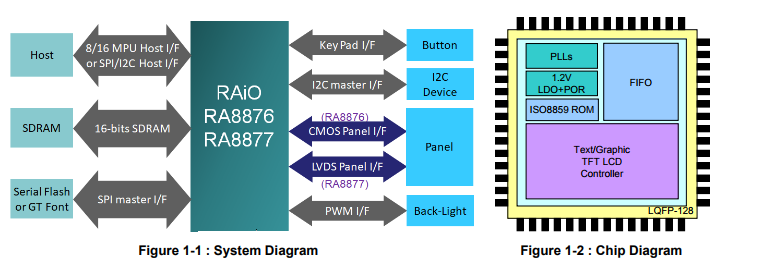

This is the Hardware Functional Specification for the RA8876/77 TFT LCD Controller. RA8876/77 supports LVDS type interface (FPD-Link). Including in this document are system block diagrams, Pin information, AC/DC characteristics, each block’s function description, detail register descriptions, and power mode control.

The RA8876/77 is a low power color LCD Controller with support for up to 512M-bits external SDRAM memory. The RA8876/77 supports an 8/16-bit asynchronous parallel host bus while providing high performance bandwidth into the external display memory allowing for fast screen updates. The RA8876/77 also provides support for multiple display buffers, Picture-in-Picture, Opacity control, and display rotation/mirror … etc.

Features

Frame Buffer
- SDRAM density:16Mb, 32Mb, 64Mb, 128Mb, 256Mb or 512Mb
- SDRAM configuration: x16
- 16-bit SDRAM bus, maximum frame buffer: 256MB/512MB

Supports images sizes : 1366 x 768

Mono / 256 / 65K / 16.7M colors

CMOS TTL

LVDS IF

High Speed 3/4, IIC Serial MCI I/F

Embedded ASCII Font. 8x16,12x24,16x32 Character

Supports Ext. Font Code IC

Provide 4 User-defined 32x32 pixels Graphic Cursor

DMA Function

Supports Alpha-Blend, PIP, BTE

Geometric Drawing Engine

Related product Specification
Functions RA8871M | RA8873M| RA8876M RA8876 | RA8877 RA8875
Product Guide RA8871M : PDF RA8876 : PDF RA8875 : PDF
  RA8873M : PDF RA8877 : PDF
  RA8876M : PDF
Resolution(Max) RA8871M : 320 x 240 / 480 x 272
RA8873M : 800 x 480
RA8876M : 1366 x 768
1366 x 768 800 x 480
Colors(Max) RA8871M : 256 / 65K / 16.7M
RA8873M : 256 / 65K
RA8876M : Mono / 256 / 65K / 16.7M
Mono / 256 / 65K / 16.7M256 / 65K
Panel Type CMOS / TTL RA8876 : CMOS / TTL
RA8877 : LVDS
CMOS / TTL
Parallel MPU Interface 8/16-Bits 8/16-Bits8/16-Bits
Serial MCU I/F SPI 3 | 4 / IIC SPI 3 | 4 / IICSPI 3 | 4 / IIC
Master I/F SPI / IIC SPI / IIC--
Embedded Display RAM SDRAM --768KB
External SDRAM -- Up to 512Mbits--
Embedded ASCII Font ISO-8859
Latin 1, 2, 4, 5
ISO-8859
Latin 1, 2, 4, 5
ISO-8859
Latin 1~4
External Font ROM I/F Serial SerialSerial
Touch Panel Controller -- --4-Wires
Block Transfer Engine V VV
Geometric Speed-up Engine V V V
Virtual Display Multi Buffer Display Multi Buffer Display--
Picture-in-Picture V V --
Dual Pages Mode V V V
Horizontal Scroll V V V
Vertical Scroll V V V
Graphic/Font Rotation V V V
Programmable Text Cursor V V V
Support Graphic Cursor V V V
User-defined Characters V V V
Alpha-Blending V V --
DMA V V V
PWM O/P 2 2 2
Smart Key-Scan 5x5 5x5 4x5
GPIO Max 40 Max 40 9
Clock Source X'tal + PLL X'tal + PLL X'tal + PLL
Operation Voltage 3.0 ~ 3.6V 3.0 ~ 3.6V 3.0 ~ 3.6V
Package LQFP-128 LQFP-128 LQFP-100
Operation Temperature -40 ~ +85℃ -40 ~ +85℃-30 ~ +85℃
