RA8875 是一个文字与绘图模式的双图层液晶显示 (TFT-LCD) 控制器,可结合文字或2D图形应用,最大可支持到800*480 点分辨率的中小尺寸数字面板。
内建 768KB 显示内存可提供大多数使用者的应用一个更弹性的解决方案。此外,使用者可藉由选用外部串行式Flash 接口,支持BIG5/GB 编码,可提供最大达32*32 像素之的字型输入。
在图形的使用上,RA8875 支持2D 的BTE 引擎 (Block Transfer Engine),此功能兼容于一般通用的2D BitBLT 功能,可处理大量图形数据转换与传送。
同时RA8875 也内建几何图形加速引擎 (Geometric Speed-up Engine),提供使用者透过简单的设定轻松画出直线、矩形、圆形和椭圆的几何图形。为了贴近终端始用者的应用,RA8875 整合了强大的功能,
如画面卷动功能、显示浮动窗口、图形Pattern 及文字放大等功能,可大量节省使用者软件开发的时间,并提升MCU软件的执行效率。
RA8875 提供低成本的 8080/6800 并列式MCU 接口,由于内建强大的硬件加速功能,可降低数据传输所需的时间并且改善效率。RA8875提供串行式 SPI/I2C 等极少量脚位的界面,
内建 4-wire 的触控面板控制器,以及2组脉波宽度调变 (PWM) ,可用于调整面板背光或其它应用。相对于其它的解决方案,RA8875是一个功能强大及低成本的彩色TFT 控制器,
让使用者顺利解决软硬件开发上的疑虑,同时达成低成本、高效能的系统方案。

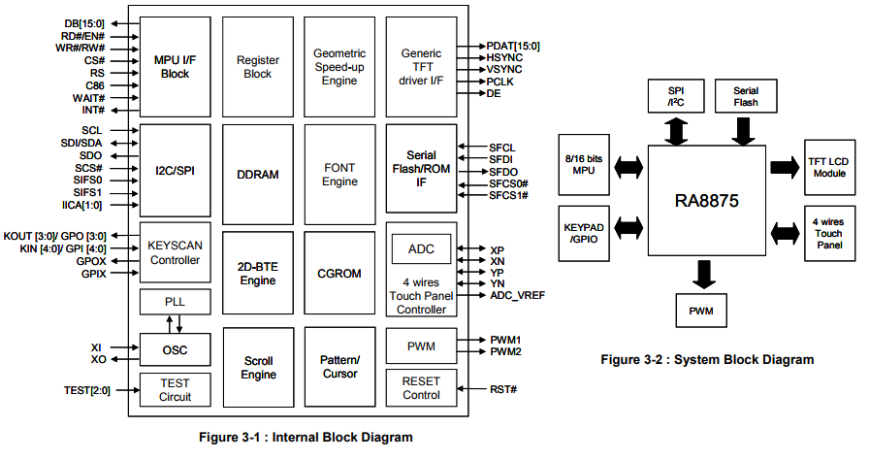

Support Text/Graphic Mixed Display Mode
Supports images sizes: 800 x 480
Embedded 768KB DDRAM
256/4K/65K Colors
Supporting TFT 8/12/16 bpp Generic RGB Interface
8/16bit parallel, 3/4 Wire SPI ,IIC
Embedded 8x16 Character
Powerful Block Scrolling Function for Vertical or Horizontal Direction
External Serial Flash/ROM SPI I/F Supporting
Supports Block Transfer Engine (BTE)
Embedded Geometric Speed-up Engine
Font Enlargement and Vertical Rotation Mode Function
Supporting User-defined Characters and Patterns
Functions | RA8872 | RA8870 | RA8875 |
---|---|---|---|
Product Guide | RA8872 : PDF | RA8870 : PDF | RA8875 : PDF |
Resolution(Max) | 320 x 240 | 640 x 480 | 800 x 480 |
Colors(Max) | 256 / 4K / 65K | 256 / 4K / 65K | 256 / 4K / 65K |
Panel Type | CMOS / TTL | CMOS / TTL | CMOS / TTL |
Parallel MPU Interface | 8-Bits | 8/16-Bits | 8/16-Bits |
Serial MCU I/F | -- | -- | SPI 3 | 4 / IIC |
Embedded Display RAM | 230KB | 230KB | 768KB |
Embedded ASCII Font | ISO-8859 Latin 1~4 |
ISO-8859 Latin 1~4 | ISO-8859 Latin 1~4 |
External Font ROM I/F | -- | Parallel | Serial |
Touch Panel Controller | 4-Wires | 4/5-Wires | 4-Wires |
Block Transfer Engine | V | V | V |
Geometric Speed-up Engine | V | V | V |
Dual Pages Mode | V | V | V |
Horizontal Scroll | V | V | V |
Vertical Scroll | V | V | V |
Graphic/Font Rotation | V | V | V |
Programmable Text Cursor | V | V | V |
Support Graphic Cursor | V | V | V |
User-defined Characters | V | V | V |
UART I/F | -- | -- | V |
PWM O/P | 2 | 2 | 2 |
Smart Key-Scan | -- | -- | 4x5 |
GPIO | 6 | 6 | 9 |
Clock Source | X'tal + PLL | X'tal + PLL | X'tal + PLL |
Operation Voltage | 3.0 ~ 3.6V | 3.0 ~ 3.6V | 3.0 ~ 3.6V |
Package | TQFP-100 | TQFP-128 | LQFP-100 |
Operation Temperature | -30 ~ +85℃ | -30 ~ +85℃ | -30 ~ +85℃ |
