RA8875 is a text/graphic mixed display with 2 layers TFT LCD controller. It is designed to meet the
requirement of middle size TFT module up to 800x480 pixels with characters or 2D graphic application.
Embedded 768KB display RAM provides user a flexible solution for displaying buffer of almost application. Besides, optional external serial flash is capable to provide the up to 32x32pixels font bitmap for BIG5/GB coding. For graphic usage, RA8875 supports a 2D Block Transfer Engine(BTE) that is compatible with 2D BitBLT function for processing the mass data transfer. The advanced geometric speed-up engine provides user an easy way to draw the programmable geometric shape by hardware, like line, square, circle and ellipse.
Besides, for different end-user applications, many powerful functions are integrated with RA8875, such as scroll function, floating window display, graphic pattern and font enlargement function. These functions will save user a large of software effort during development period.
RA8875 is a powerful and cheap choice for color display application. To reduce the system cost, RA8875 provides low cost and easy-to-use 8080/6800 parallel MCU interface. Because of the powerful hardware speed-up function embedded in it, less data transfer is needed so more efficiency is improved, RA8875 also
provides serial SPI/I2C I/F with ultra-low pin-count. Useful device controller, such as flexible 4-wire touch panel controller, PWM for adjusting panel back-light are also included to reduce the system cost for customer. With the RA8875 design-in, user can achieve an easy-to-use, low-cost and high performance system comparing
with the other solution.

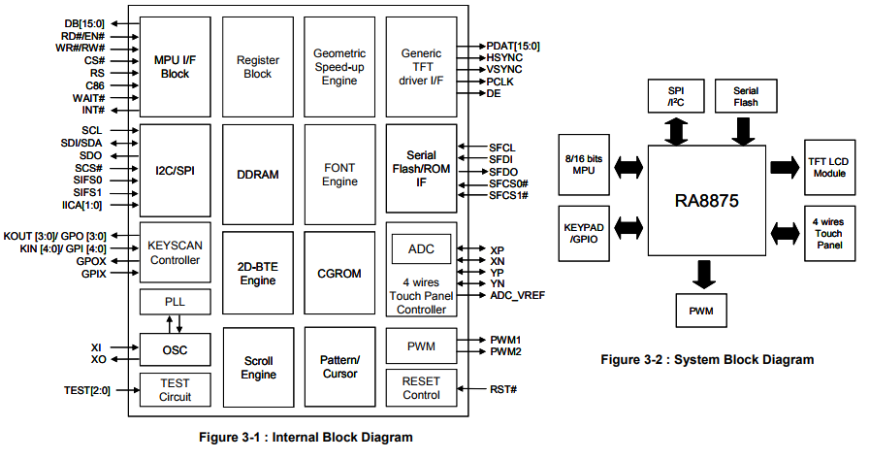

Support Text/Graphic Mixed Display Mode
Supports images sizes: 800 x 480
Embedded 768KB DDRAM
256/4K/65K Colors
Supporting TFT 8/12/16 bpp Generic RGB Interface
8/16bit parallel, 3/4 Wire SPI ,IIC
Embedded 8x16 Character
Powerful Block Scrolling Function for Vertical or Horizontal Direction
External Serial Flash/ROM SPI I/F Supporting
Supports Block Transfer Engine (BTE)
Embedded Geometric Speed-up Engine
Font Enlargement and Vertical Rotation Mode Function
Supporting User-defined Characters and Patterns
Functions | RA8872 | RA8870 | RA8875 |
---|---|---|---|
Product Guide | RA8872 : PDF | RA8870 : PDF | RA8875 : PDF |
Resolution(Max) | 320 x 240 | 640 x 480 | 800 x 480 |
Colors(Max) | 256 / 4K / 65K | 256 / 4K / 65K | 256 / 4K / 65K |
Panel Type | CMOS / TTL | CMOS / TTL | CMOS / TTL |
Parallel MPU Interface | 8-Bits | 8/16-Bits | 8/16-Bits |
Serial MCU I/F | -- | -- | SPI 3 | 4 / IIC |
Embedded Display RAM | 230KB | 230KB | 768KB |
Embedded ASCII Font | ISO-8859 Latin 1~4 |
ISO-8859 Latin 1~4 | ISO-8859 Latin 1~4 |
External Font ROM I/F | -- | Parallel | Serial |
Touch Panel Controller | 4-Wires | 4/5-Wires | 4-Wires |
Block Transfer Engine | V | V | V |
Geometric Speed-up Engine | V | V | V |
Dual Pages Mode | V | V | V |
Horizontal Scroll | V | V | V |
Vertical Scroll | V | V | V |
Graphic/Font Rotation | V | V | V |
Programmable Text Cursor | V | V | V |
Support Graphic Cursor | V | V | V |
User-defined Characters | V | V | V |
UART I/F | -- | -- | V |
PWM O/P | 2 | 2 | 2 |
Smart Key-Scan | -- | -- | 4x5 |
GPIO | 6 | 6 | 9 |
Clock Source | X'tal + PLL | X'tal + PLL | X'tal + PLL |
Operation Voltage | 3.0 ~ 3.6V | 3.0 ~ 3.6V | 3.0 ~ 3.6V |
Package | TQFP-100 | TQFP-128 | LQFP-100 |
Operation Temperature | -30 ~ +85℃ | -30 ~ +85℃ | -30 ~ +85℃ |
